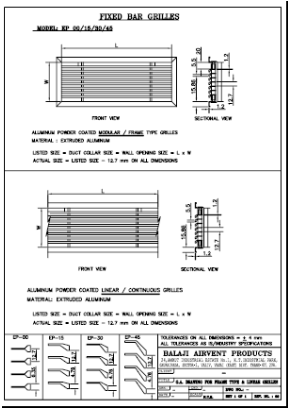

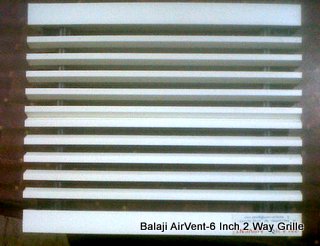

Linear Grilles

Our Linear Bar Grilles will provide you with optimum durability and performance in any environment without sacrificing aesthetic appeal.

Technical Specification & Brochures

Adjustable Deflection Grilles

• Double deflection grille consist two sets of individually adjustable blades.
• The front blades may be either horizontal or vertical.
• The grille is suitable for sidewall and may be used for supply or extract applications.
• Excellent all-purpose grille
• Air throw adjustable in both horizontal and vertical planes
• Extruded Aluminium construction.

Technical Specification & Brochures

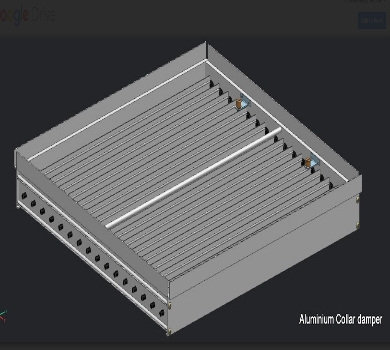

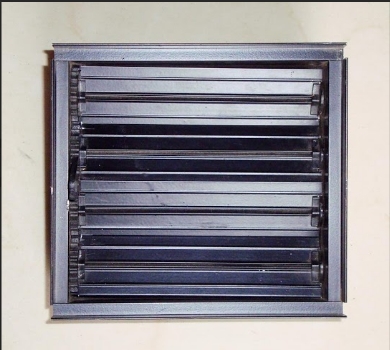

Collar dampers

Opposed blade dampers are used to regulate air flow through all Vent-Axia grilles and diffusers. Key operated.

This action ensures that the downstream airflow is non-directional when the damper is in the partially closed position. Opposed blade dampers have aluminium blades and the frame is left in natural mill finish.

Can be used in conjunction with Eggcrate, Single deflection and Double deflection grilles.

Technical Specification & Brochures

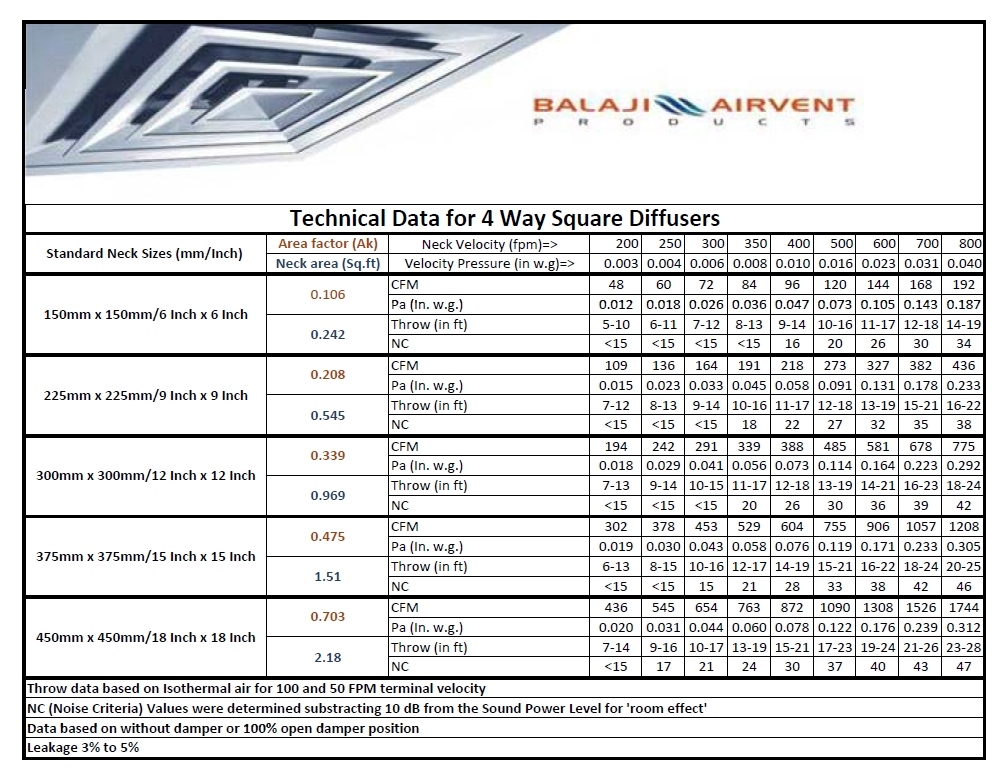

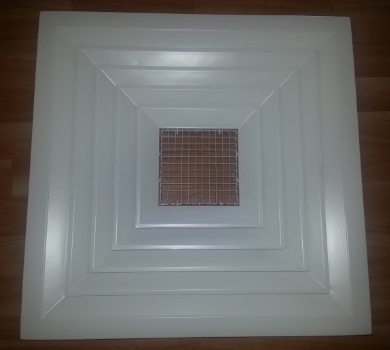

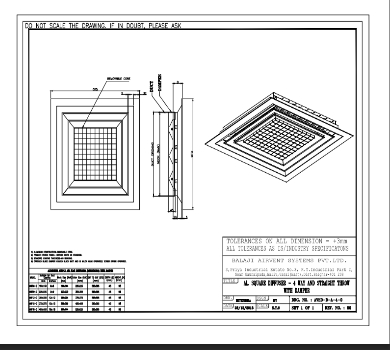

Square Diffuser

CHARACTERISTICS:

Multidirection diffuser with 1, 2, 3 and 4 ways and removable central core.

CONSTRUCTION:

Anodized aluminium.

UTILIZATION:

For ceiling installation and for air intake and delivery. Installation height: 2,5 & 3,2 m

FIXING:

Fixing by using screws on the diffuser neck.

ACCESSORIES:

• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.

Technical Specification & Brochures

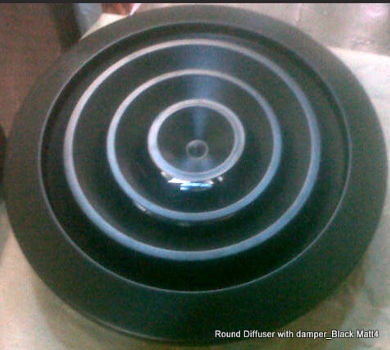

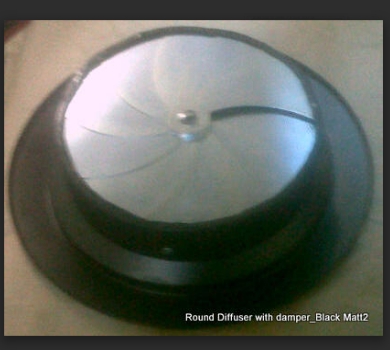

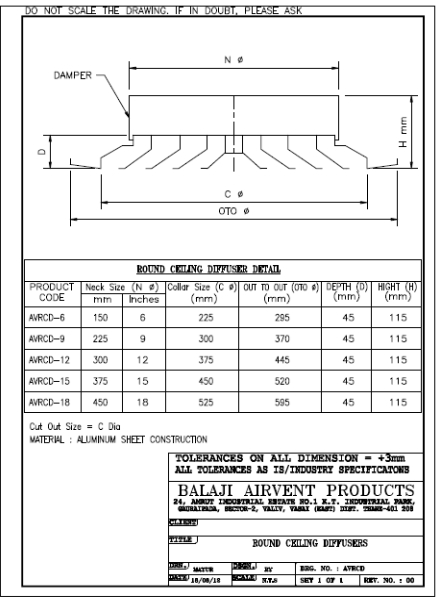

Round Diffuser

CHARACTERISTICS:

Circular diffusers with fixed cones and removabel core and butterfly damper.

CONSTRUCTION:

White RAL 9016 painted aluminium and airtight seal.

UTILIZATION:

For ceiling installation and for air intake and delivery. Installation height: 2,6 & 4,1 m.

FIXING:

Fixing by concealed fixing screws mounted on the diffuser neck or with mounting bridge.

ACCESSORIES:

Fixing ring.

Technical Specification & Brochures

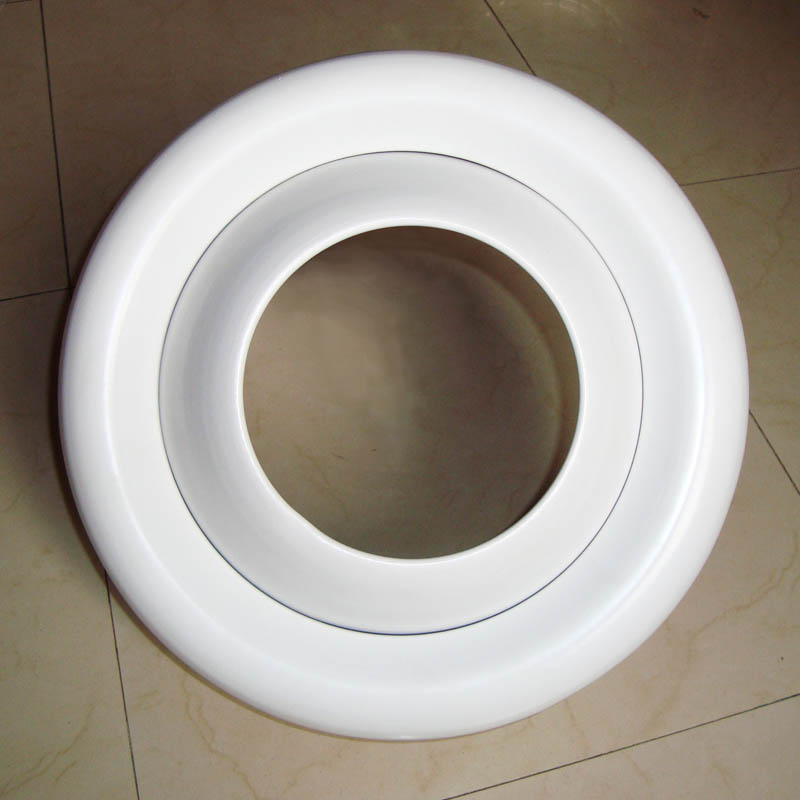

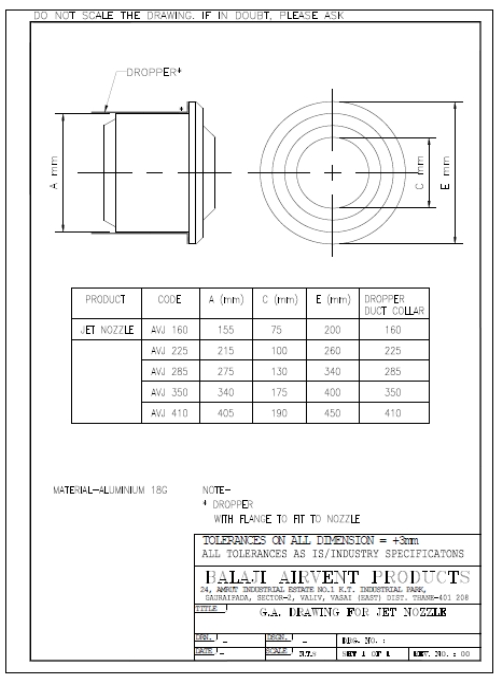

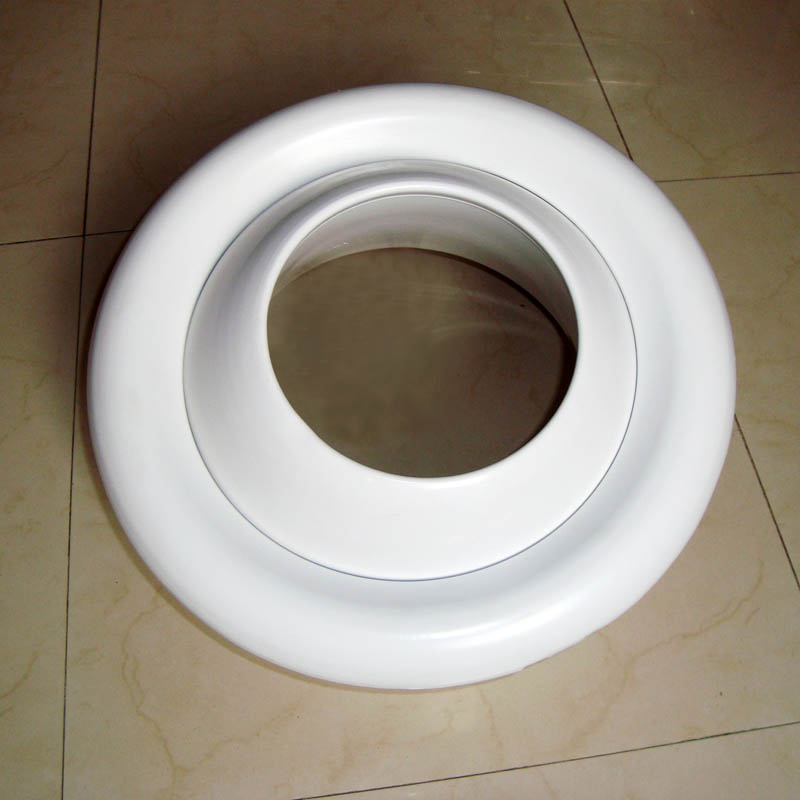

Jet Nozzles

Jet nozzles are used for preference where the supply air from the unit has to travel a large distance to the occupied zone. This is the case in large rooms (halls, assembly rooms, etc.), particularly when the distribution of air via conventional ceiling diffusers is not possible or not practical. Here jet nozzles are arranged in the side wall areas. When the temperature difference between the supply air and the room air changes, the supply air stream is deflected upwards (warm air) or downwards (cold air). The direction of the supply air flow is also affected by other influences such as local convection effects or draughts within the space.

Technical Specification & Brochures

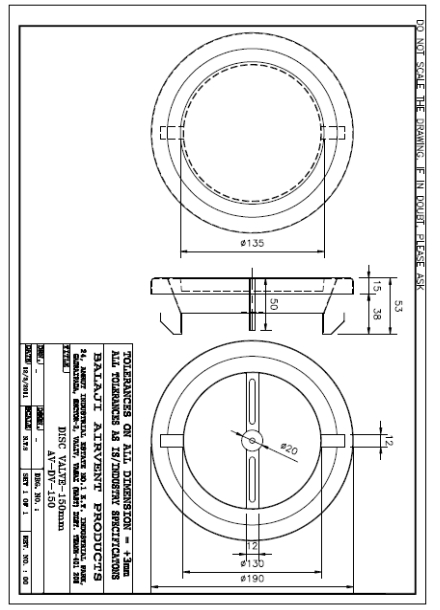

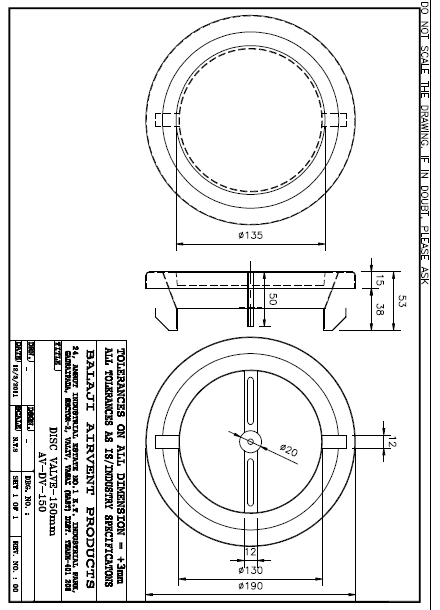

Disc Valves/Exhaust Valves

• The Disc Valve/Exhaust valve is suitable for use with all types of ventilating systems and offers an alternative low cost valve were noise level, although important is not critical.
• Complete with mounting ring, Center core adjustable by screw and nut for air volume control.
• Available in Metal and Plastic.

Technical Specification & Brochures

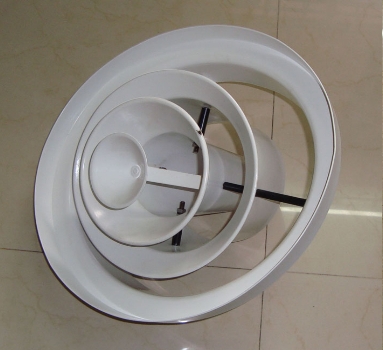

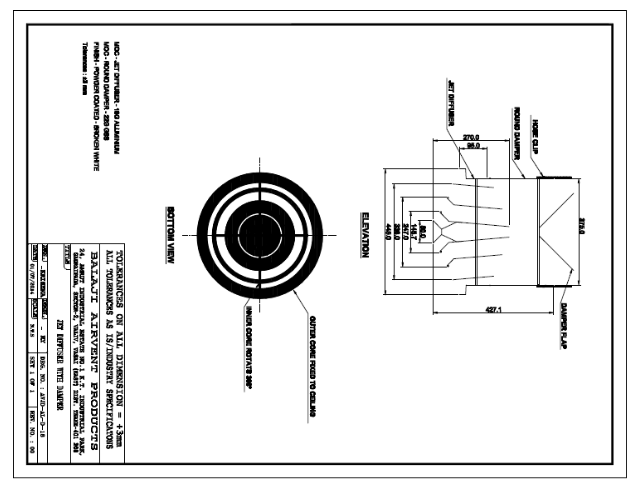

Jet Diffusers

Jet diffuser is made up of high quality aluminium. Jet diffuser are designed for use in large areas and for long Air throw such as Sport centres,Theatres, Airports, Auditoriums etc.

Construction:

• Frame: High quality heavy gauge aluminium sheet.
• Outer flange: High quality extruded aluminium profiles.
• Inner rings: Aluminium spun rings.
• Optional accessories: Plenum box either lined or un lined as per clients choice.

Description:

• Frame and inner rings are high quality aluminium construction with the advantages of corrosion resistance.
• Jet nozzle section is mounted in aluminium square plate covered by flanged border.
• Nozzles can be adjusted 300 up words and down words to achieve required throw as per site condition. Nozzle jet can be rotated by 3600 by adjusting the mounting frame.
• Generally designed for wall mounting. For ceiling mounting, drill 2 to 4 holes in the face of the flanged border.
• Air master jet diffusers are specially suitable to handle large quantity of air with long throw Ideal for commercial use such as concert halls, theatres, exhibition and sport halls.
• Jet nozzles can be supplied with plenum box, which is manufactured from galvanized steel sheet as option.
• Plenum boxes can be supplied with round duct damper at the spigot as option.Standard finishes:
• Powder coated colour finish as per RAL colour codes.
• Flexibility of finishing is available.

Technical Specification & Brochures

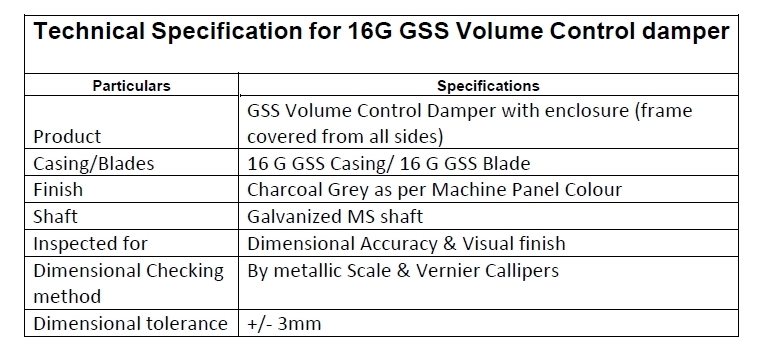

GI Duct Damper / Volume Control Damper

Designed for balancing airflow in duct work systems. They are typically intended for manual operation with a locking handle and do not provide tight shutoff.

Motorized Volume Control Damper

We offer different types of motorized dampers to suit various types of site applications according to the customer's requirements.

Materials: All types and models of Motorized dampers are available in G.I*- galvanized sheet steet.

Designed to stop the spread of fire by means of localizing areas of fire zones, to prevent the distribution of fire through a/c ducts or walls in central HVAC system.

Aerofoil low leakage dampers.

Description:

• Designed for use in heating, ventilating and air conditioning systems for low-leakageapplications
• Joints are welded and protected by aluminium spray coating to prevent rusting.
• Blades are coupled by toothed nylon gears which provides opposed blade operation.
• Hand locking quadrant is provided with clear open/close indication and three intermediate open positions.
• Foam gasket is sealed across the blade edges to minimize air leakage between the blades.
• Flanged edges are supplied un-drilled as standard.
• Dampers without flanges available as option for duct insertion purpose.

Gravity Louvers/Back draft dampers.

General Properties

• Excellent design for both supply exhaust ventilation
• For outside use , for movement of air one way from inside to outside.
• Louvres balanced to give good air flow at appropriate pressure level..
• High quality components
• Practical mounting secured by latches
• Easy maintenance
• Mosquito net optional

Return Air Ceiling Grilles

Return Air Grilles simply returns air to the furnace where it is filtered and either cooled or heated and then re-circulates through the air supply grilles. We offer a variety of removable face, stamped, fixed bar, and fixed-hinged return air grilles for your convenience. Each return air grille will offer its own set of unique options.

Technical Specification & Brochures

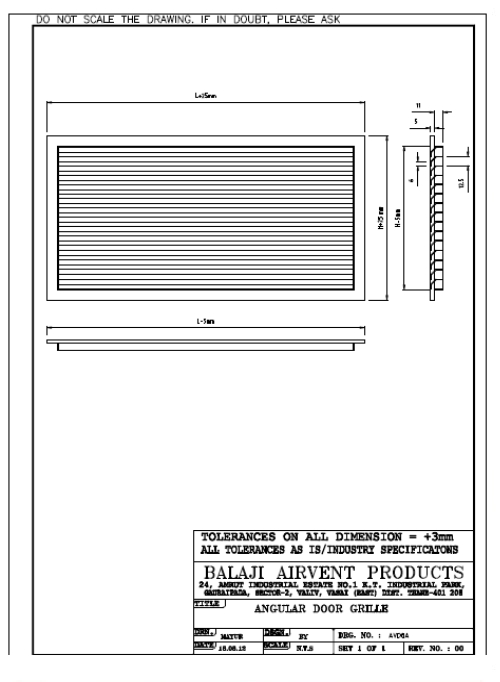

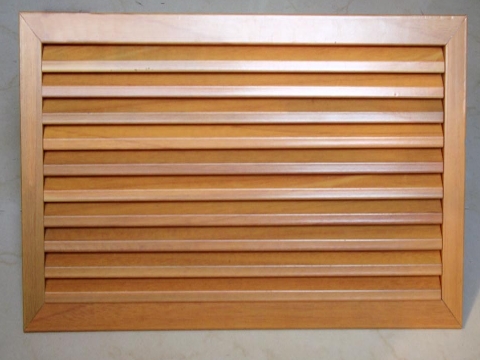

Door Grilles

Balaji Airvent offers a basket of products to suits most ventilation applications in the region and around. This has been possible only through decade of design, research and development. We realize and understand that the thermal comfort of a room or buildings occupants depends predominantly upon the performance of air terminal devices. It is imminent that air must be distributed into a space at the right temperature, quantity and velocity.

Balaji Airvent ventilation products are tested to achieve this goal and suit most ventilation applications. This section has all the products manufactured by air master and its sister concerns. All products are ETL certified for their performance and efficiency. Fire damper and Fire door are UL classified.

Technical Specification & Brochures

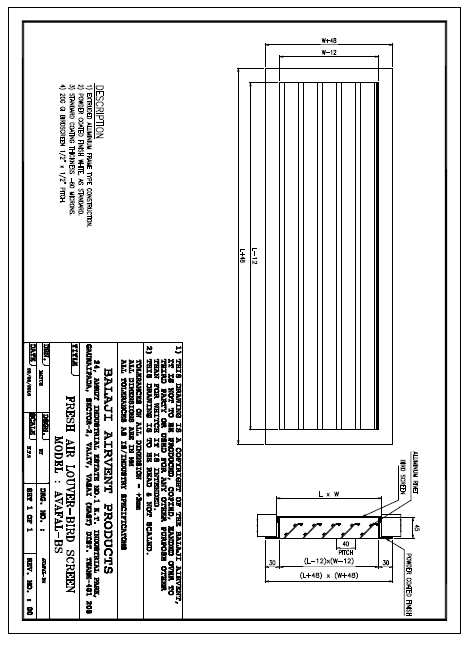

Fresh Air Louver

Fresh Air Louver or Weather Protection Louver is a weather proof external cover for air inlet and discharge openings, suitable for most external walling and screening applications.

It is composed of set of blades made of heavy guage Aluminium Extrusions arranged in horizontal rows and inclined downward to protect against rain water.

Fresh Air Louver/Exhaust Air Louver is also used in cooling, heating and air ventilation applications.

Technical Specification & Brochures

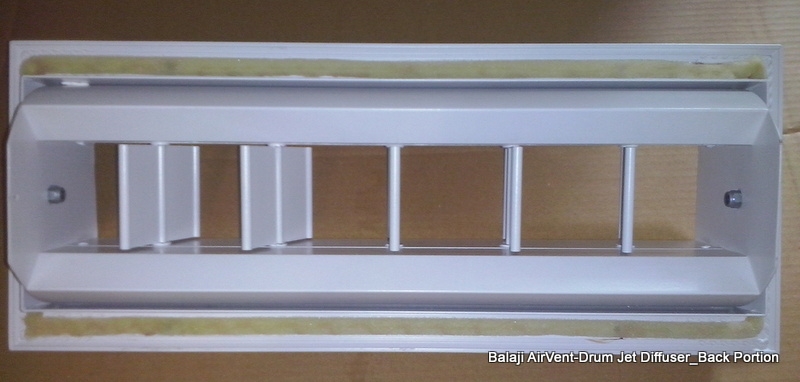

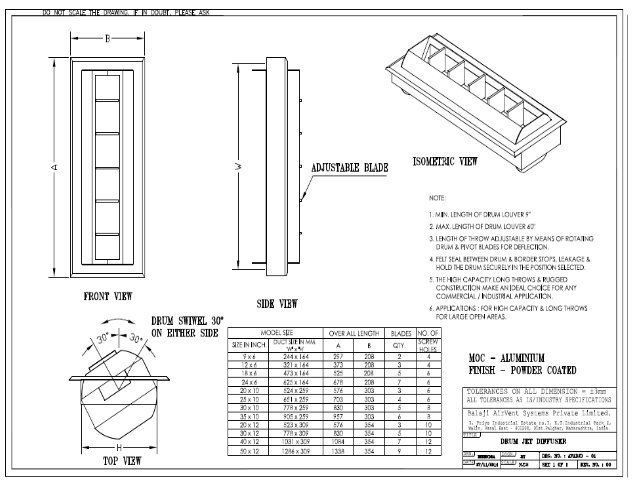

Drum Jet Diffuser

Most useful in supply situations, drum jet diffusers offer a level of adjustability unsurpassed by any other diffuser. For vertical throw adjustment the drum, housed within its exterior frame can be rotated. For horizontal adjustment, individually movable blades within the drum can be adjusted.

This level of adjustability gives drum jets the unique ability to create a wide ranging, low powered blow pattern, or a targeted powerful throw. Perfect for warehouses, factories, or other open plan areas requiring a diffuser with a throw strong enough to reach many metres away.

Offering two ranges of drum jet gives you unmatched levels of choice when it comes to choosing your diffuser. If you require a standard sized unit in satin anodised or RAL9010, then our range of stock drum jets is perfect for you. If however you want a custom built unit in a specific colour then the premium range is your best option.

Both our premium and stock range have the same excellent levels of adjustability, and both have entirely extruded aluminium frames, blades and drums for superb quality.

Technical Specification & Brochures

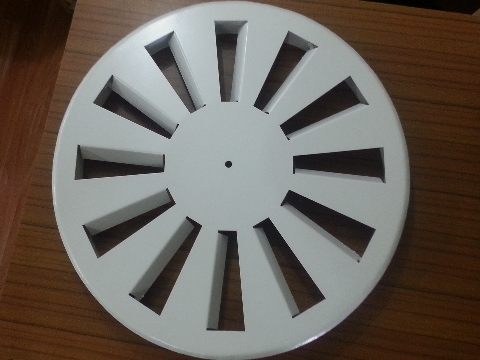

Swirl Diffusers

An extremely effective supply diffuser, swirl diffusers create a swirling throw which pulls in surrounding air quickly. This helps to eliminate cold spots which can cause discomfort to room occupants. The turbulent throw also slows the supplied air down rapidly, helping to avoid draughts.

With a 595mm square overall size, all HVC Swirl Diffusers are designed for use in a 600mm square ceiling system.

Architectural Plaque Diffusers

The ASDP/ASDT architectural diffuser provides an aesthetically pleasing appearance which is clean, simple and unobtrusive. The ASDP diffuser provides a metal plaque face while the ASDT provides a frame that accepts a ceiling tile (by others) to form the plaque face. The diffusers discharge air horizontal to the ceiling causing secondary air circulation and mixing. The ASDP matching VAV diffuser is the AVDP.

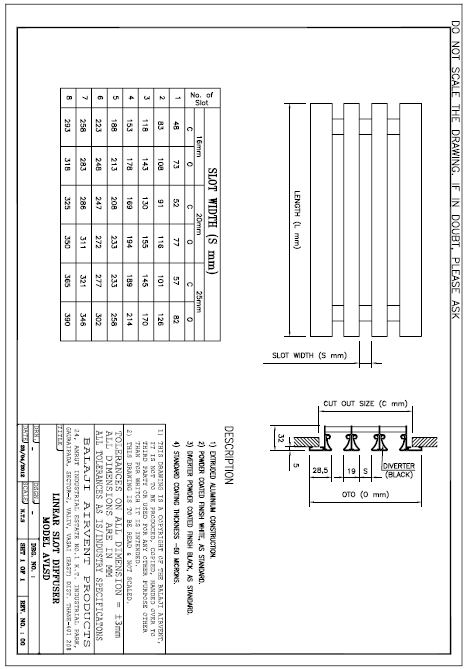

Slot Diffuser

Application

• Slot diffusers are used as supply air or extract air devices or as supply and extract air combinations in comfort zones
• Angled one-way air discharge for turbulent flow (mixed flow ventilation)
• High induction results in a rapid reduction of the temperature difference and airflow velocity (supply air variant)
• For variable and constant volume flows
• For supply air to room air temperature differences from 10 to +10 K
• For room heights up to 4 m (lower edge of suspended ceiling)
• For the space saving installation into lightweight partition walls with a 50 mm wide metal support structure and a wall thickness of 100 mm

Technical Specification & Brochures

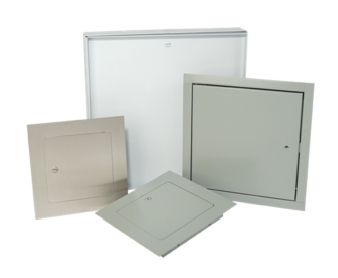

Trap Doors

Access Doors and Panels are manufactured to solve a myriad of access needs. Custom sizing, materials, and custom colors are available to ensure that whatever you need for your project, we've got you covered. Shipped direct from our central manufacturing facility or from one of our strategically located stocking locations, Babcock-Davis delivers the doors you need.

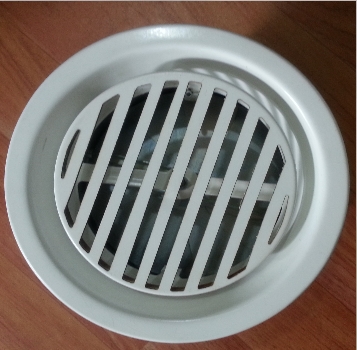

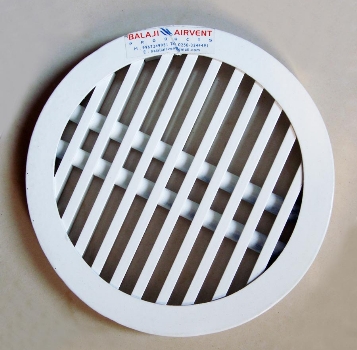

Round Grilles

Material

• Made from aluminium sections: AlMgSi 0.5 (according to EN 12020-2)
• Finishing: anodised in satin colour (20 microns) or powder-coated in any R AL or Syntha Pulvin® colour (60-80 microns) (for UK min 40 microns)
• Stainless steel 304 insect screen (2.3 x 2.3 mm) or mesh (6 x 6 mm) on request
• Frame assembled by a single weld

Fixing

Brackets pre-fitted to the frame

Dimensions

• Depth to fit: 28.2 mm
• Flange size: 23 mm
• Minimum diameter: 300 mm
• Maximum diameter:

  • - 1400 mm if anodised in satin colour
  • - 1500 mm if powder-coated in RAL or Syntha Pulvin® colour
  • - over 1500 mm: in two parts

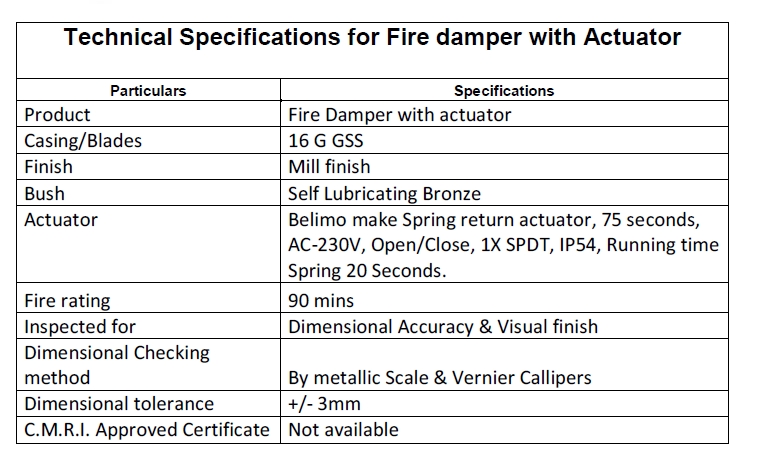

Fire dampers

A device designed to impede the spread of fire through walls, floors and partitions. Its construction includes a galvanized steel frame and a fusible link, a heat sensitive device (usually set at 165 F). When the fusible link opens it releases the damper components to close. When the damper components close the damper will restrict the migration of fire. Fire damper products are listed with hourly ratings, see "Fire Rating" below. They are also listed as standard (static) dampers or dynamic dampers
